ROADMASTER C30 Line Striping Truck
Product Availability: Yes / Manufacturer: VEZOS

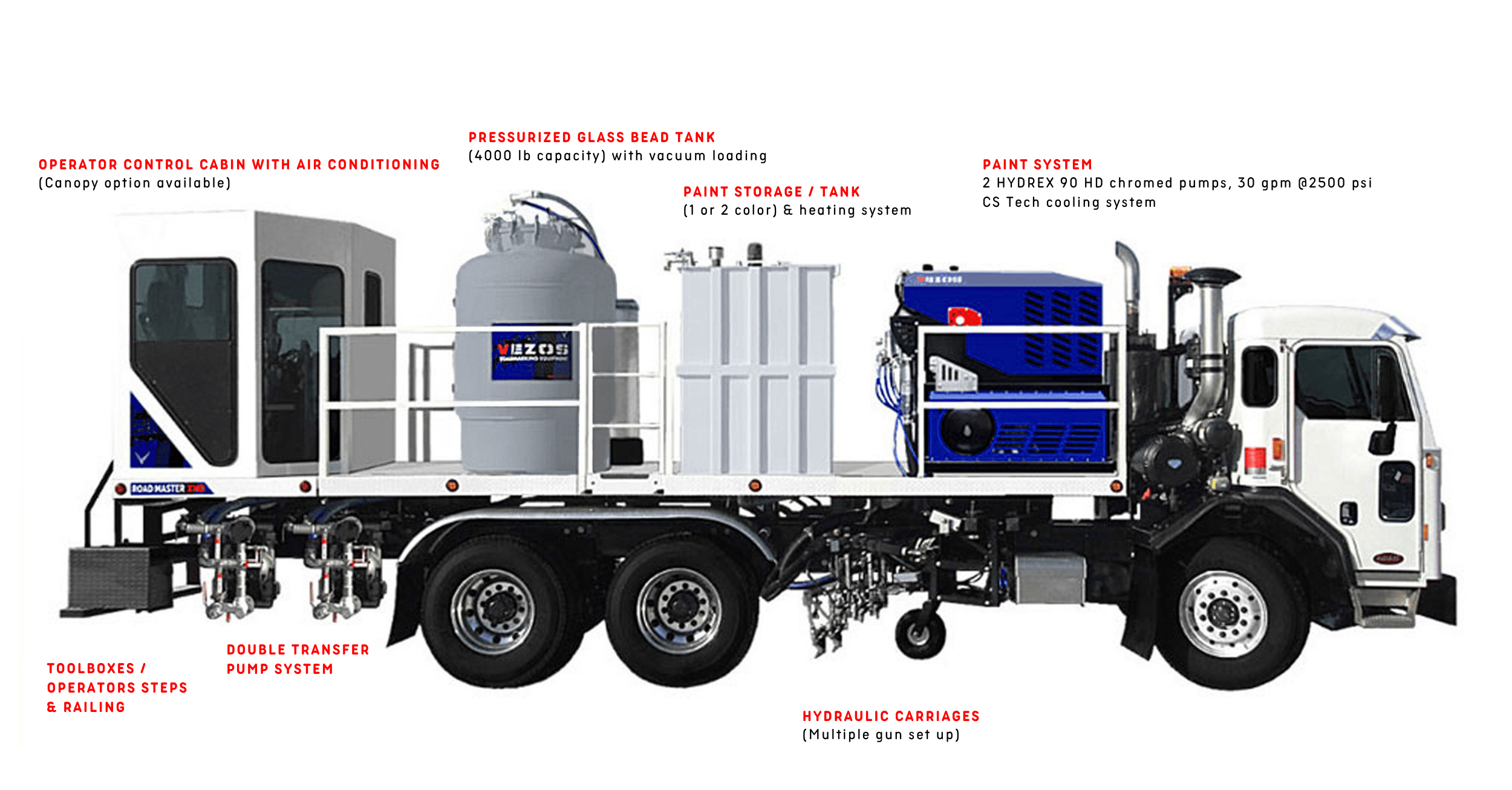

VEZOS ROADMASTER C30 Line Striping Truck is a heavy-duty, high-capacity road marking system engineered for long-line highway striping and large municipal projects. Equipped with two HYDREX 950 PowerMax pumps, dual autonomous hydraulic circuits, TCS cooling technology, and a canopy-covered rear operator station, it allows precise control of the striping process from the main console. The ROADMASTER C30 delivers maximum efficiency, professional-grade lines, and customizable configurations for demanding road marking applications.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Truck Mounted Line Stripers
Get Price Online Catalog Video
ROADMASTER C30 LINE STRIPING TRUCK
STANDARD SETUP
HYDRAULIC PAINT PRESSURE SYSTEM
Module ROADMASTER C30
- 2 Autonomous & complete hydraulic circuit systems
- 2 HYDREX 950 PowerMax hydraulic fully chromed piston paint pumps | 15 gpm (x2) @ 2150 psi
- 4 High pressure pump paint filters
- TCS system cooling technology
- 74 HP Diesel engine
PAINT STORAGE
- 4 Drum holders 55 gal each
PAINT LOADING SYSTEM
- 2 SST Hydraulic paint loading pumps 2" complete with hosing
GLASS BEAD SYSTEM
- 1 steel pressure bead tank 1500 lbs. capacity
- Vacuum bead loading system
CARRIAGES
- 2 Hydraulic gun carriages assemblieswith HD pneumatic tires & solenoid boxes
- 2 Air lifts
- 3 Paint gun actuators
Gun configuration:
- 3 Automatic airless paint guns + 3 glass bead triggers (left)
- 1 Automatic airless paint gun + 1 glass bead trigger (right)
- Manual paint | stencil kit (50ft hose, manual airless gun, reel)
REAR OPERATORS STATION
- Canopy deck setup
- 2 Rear operator suspension type seat assemblies STD
- Operators main control console
GUIDANCE SYSTEM
- 2 Road marking controllers SKIPLINE USA X series (5 channels)
ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS
- Platform base
- SST chromed HYDREX 950 PowerMax piston pump
- Additional HYDREX 950 PowerMax piston pump (3rd color)
- Paint & bead line for additional pump
- HD Monitor & Camera kit (1-2)
- Bead tank 3000 & 4000 lbs. capacity
- Vacuum bead loading system
- Hydraulic paint agitators
- Dual gun carriage
- Paint SST tank 125 gallons x 2qty | 250 gallons x 2qty
- Paint totes 125 gallons x 2qty | 250 gallons x 2qty
- Gun actuators
- Gallon counters
- Strobe lighting kit
- Laser guidance system HD kit
- Intercom system 2 & 3 station
- Closed box type operation cab
- Aluminum toolbox
- Fire extinguishers
- Air jets for gun carriage
- Paint heating system
- Additional gun & bead guns
- LED message board
- Digital speedometer
| MODEL | ROADMASTER C20 | ROADMASTER C30 |
| ROAD MARKING TRUCK | ROAD MARKING TRUCK | |
| Material Delivery (max) gpm | 20 | 30 |
| Material Delivery (max) lpm | 76 | 114 |
| Working Pressure (max) psi | 2150 | 2150 |
| Working Pressure (max) bar | 150 | 150 |
| Engine Power - Type | 55 HP - Diesel | 74 HP - Diesel |
| Pump | HYDREX 630 (x2) | HYDREX 950 PowerMax (x2) |
| Color | 2 Color | 2 Color |
| Arm Bracket | HD Hydraulic Carriage (x2) | HD Hydraulic Carriage (x2) |
| Gun Setup | 4 | 4 |
| System - Operation | Automatic | Automatic |
| Includes: | ||
| Paint Gun | 4 | 4 |
| Guard | 4 | 4 |
| Tip | 4 | 4 |
| Glass Bead Gun | 4 | 4 |
| Manual Stencil Kit | included | included |
| 5 Channel Controller (x2) | included | included |
| Paint Storage 55 gal (x2) | included | - |
| Paint Storage 55 gal (x4) | - | included |
| Glass Bead Pressurized 750 lbs | included | - |
| Glass Bead Pressurized 1500 lbs | - | included (with vacuum loading system) |
| Camera - Monitor Kit | included | included |
| Operator Deck Canopy | included | included |
| 2 Rear Suspension Type Operator Seats | included | included |
| Operator Main Control Console | included | included |
