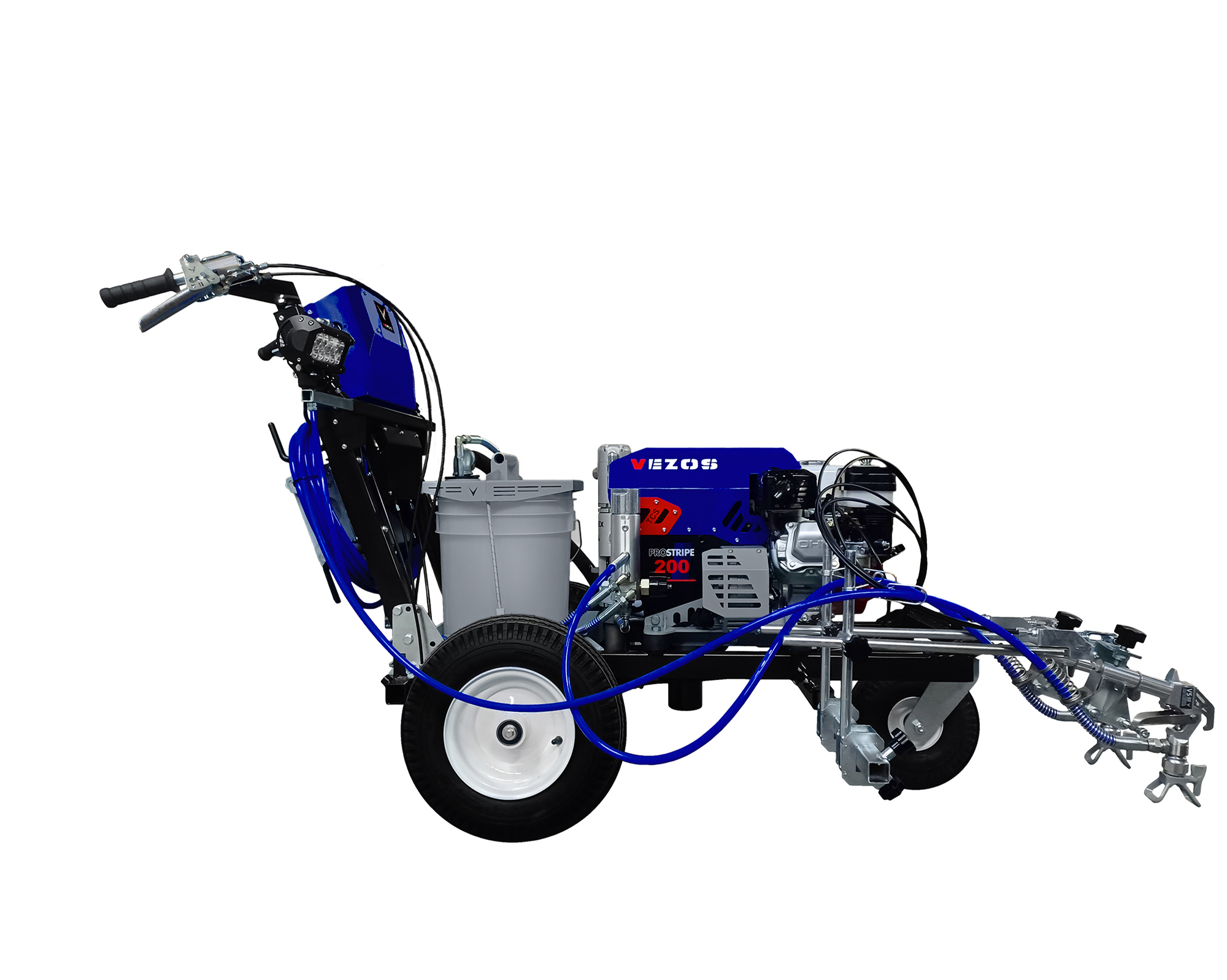

Walk Behind Line Striper PROSTRIPE 200 WB - 1 or 2 Gun Paint Sprayer

SKU: 23.9017410  /  Product Availability: Yes  /   Manufacturer: VEZOS

Hydraulic Walk Behind Line Striper PROSTRIPE 200 WB - 1 or 2 Paint Gun

Line Striper PROSTRIPE 200 is contractor’s initial choice for parking lots & local roads striping. Equipped with VEZOS powerful slow stroke hydraulic pump, working at 230 bar pressure & an 6.5 lit/min flow, the PROSTRIPE 200 offers hydraulic power in every aspect. VEZOS PROSTRIPE 200 has a unique foldable chassis, allowing this line striper to be easily transported in any vehicle & stored away without taking up space. For extra stability, the PROSTRIPE 200 has the largest front swivel wheel in the industry and an improved anti-vibration system, ensuring perfect straight line no matter the surface.



Back to: Walk Behind Line Stripers

Get Price Online Catalog Video



features


Specifications



PROSTRIPE 200 WB


1 PAINT GUN
2 PAINT GUN
 Type  Hydraulic Hydraulic
 Max bar  230 bar 230 bar
 Max psi  3350 psi 3350 psi
 Max lpm  6.5 lpm 6.5 lpm
 Max gpm  1.7 gpm 1.7 gpm
 Engine  4.8 HP 4.8 HP
 Guns  1 Manual 2 Manual
 Dimensions(cm)    120x80x120(h)  120x80x120(h)
 Type  Walk-Behind Walk-Behind
 Pump size  50 x 1qty 50 x 1qty
 Console  Basic Basic
 Paint Hopper  68 lit 68 lit
 Glass Bead Syst.  Optional Optional
 Glass Tank Cap.  21 lit 21 lit
 Re-Stripe Pointer  Optional Optional
 Part Number  23.9017410 23.9017411





walk behind line striper vezos prostripe 200









Hydraulic Walk Behind Line Striper PROSTRIPE 200



PROSTRIPE 200 Standard Hydraulic Line Striper is a new edition to the range.
Equipped with VEZOS slow stroke hydraulic pump, this basic edition
is appropriate for parking lot line striping, with 1 or 2 guns.
Foldable chassis for easy transportation & storage.

Add VEZOS 68 lit paint hopper & VEZOS vibrated assisted bead hopper 21 lit.












vezos walk behind line striper prostripe 200 - 1 paint gunINCLUDES:

- Airless spray guns

WIDE VIEW DESIGN
Low profile design for panoramic view of job site

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 50
Slow stroke 6.5 l/m (1.7 gal/min) delivery
Built in filter

MANUAL GUN OPERATION
1-2 manual paint gun set-up
Adjustable gun height
Front and rear gun placement
Removable gun for stencilling

OPERATION CONSOLE PS 200
Engine throttle
Engine & system ON/OFF
 Pressure gauge
 Hand brake
 Cup holder

EXTRA FEATURES
T.C.S cooling technology
Re-striping pointer
Hydraulic oil reservoir 9 lit & oil level indicator
Anti-vibrations control





walk-behind-line-striper-vezos-prostripe-200



Brochures


vezos-brochures Download: VEZOS Road Marking - Line Striping Catalog
