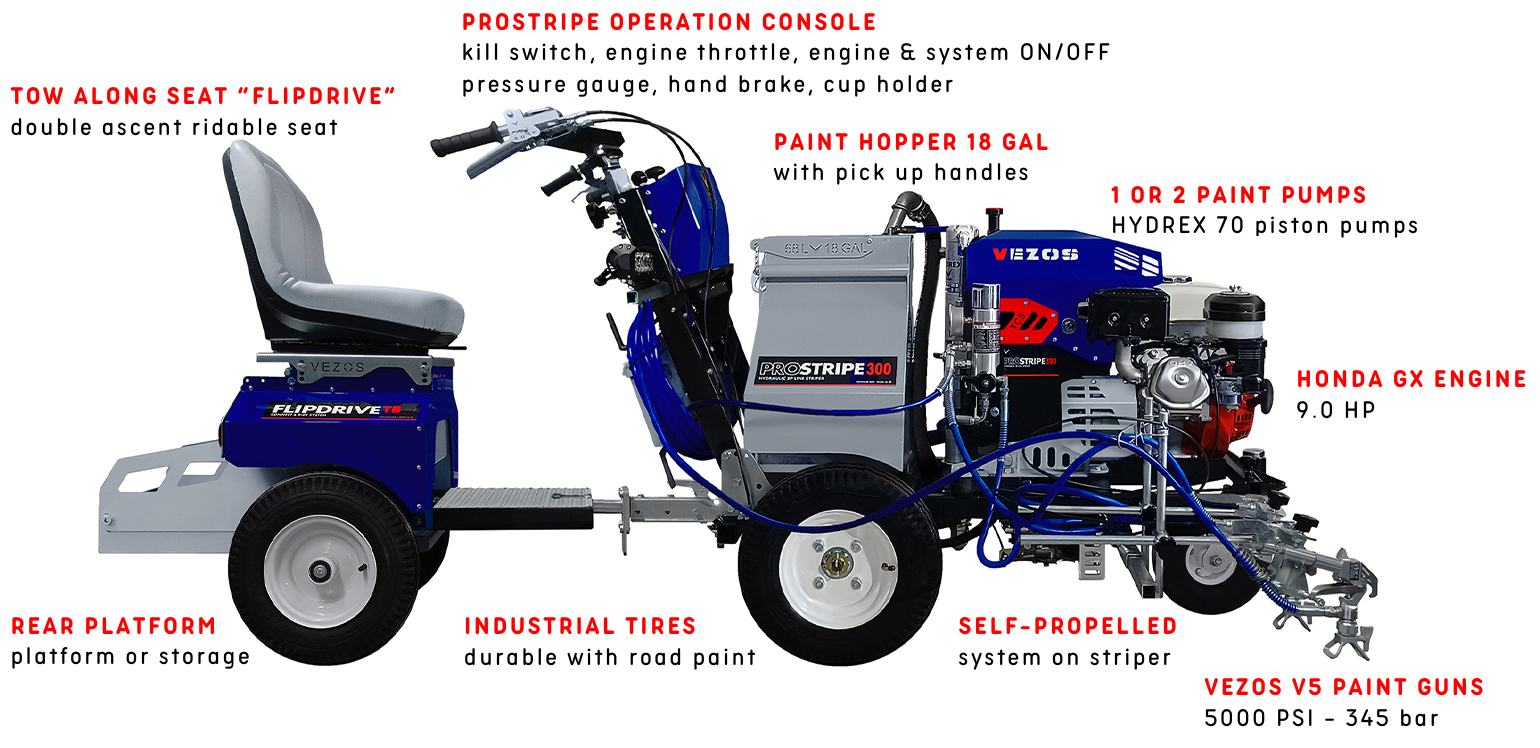

Self Propelled Line Striper PROSTRIPE 300 SP - 2 Paint Gun - Paint Hopper 68L - FLIPDRIVE

SKU: 23.9255032  /  Product Availability: Yes  /   Manufacturer: VEZOS

PROSTRIPE 300 SP Self-Propelled Line Striper - a revolutionary asphalt marking solution. Featuring a low-profile, 68 lit paint tank, for optimal visibility and striping performance. Experience the versatile VEZOS FLIPDRIVE ride-along seat, which conveniently transforms between a comfortable seat and a stable stand-on platform. Safety is our top priority, and the integrated kill switch connected to the console ensures a secure driving experience. Upgrade your road marking game with the PROSTRIPE 300 SP, the ultimate choice for professional striping projects.


*Photos may contain features that are not included on the standard edition of the product.*


Back to: Self Propelled Line Stripers

Get Price Online Catalog Video



Self Propelled Line Striper PROSTRIPE 300 - 68 lit Paint Hooper with Tow-Behind Rider FLIPDRIVE

Take your asphalt marking to the next level with the PROSTRIPE 300 SP, a game-changing solution for professional striping projects. This innovative machine features a low-profile, 18-gallon paint tank, designed for optimal visibility and striping performance. Say goodbye to limited visibility and hello to unparalleled striping capabilities!

Experience the ultimate in comfort and convenience with the VEZOS FLIPDRIVE tow-behind rider seat, which perfectly transforms between a comfortable seat and a stable stand-on platform. Whether you're working on a large-scale project or tackling smaller tasks, this versatile feature ensures maximum productivity and efficiency.

Self Propelled Line Striper PROSTRIPE 300 SP - Paint Hopper 68L - FLIPDRIVE

Includes:
- FLIPDRIVE TB ride along double ascent seat
- Paint hopper 68 lit - 18 gal
- Airless spray gun(s) x 2 qty



SELF-PROPELLED LINE STRIPER
SP system located directly on the striper
3-way drive / ride system
Motorcycle type motion control drive
Operation speed 16 km/h - 10 mph

WIDE VIEW DESIGN
Low profile design for panoramic view of job site
Road view ahead even in sitting position
Extreme visibility even with glass bead tank in place
No head or body tilting to stripe | Safety first

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 70
1 & 2 colour set up
Slow stroke 8.5 lit/min - 2.3 gal/min delivery
Built in filter

PAINT HOPPER 68 lit | 18 gal
Low profile paint tank for increased visibility
Single or double colour
Lift brackets & security hitches

GLASS BEAD HOPPER 32 kg | 70 lbs (optional)
Gravity tech bead system
Steel hopper with wide opening
Easy connection, no tools needed

MANUAL GUN OPERATION
Electric paint gun actuator
1-2 manual paint gun set-up
Adjustable gun height
Front and rear gun placement
Removable gun for stenciling

OPERATION CONSOLE PS 300
Kill switch | Engine throttle
Engine & system ON/OFF
Pressure gauge
Hand brake
Cup holder

FLIPDRIVE LINE STRIPE SEAT
Double ascent ride | sit – stand ride along
Tow behind attachment
Rear extra space for cones or gas tank
Hidden tool compartment with anti-slip surface

EXTRA FEATURES
Anti-vibration control
T.C.S cooling technology
Hydraulic oil reservoir 2.5 gal & oil level indicator
Storage compartment (1.4 gal capacity, easy reach)
Enhanced electrical system (automotive type alternator)
Fully adjustable steering bar (height, width, grip inclination)

OPTIONAL ADD-ONS
Re-striping pointer
Gravity glass bead system (70 lbs)
LINEMATIC system (automatic operation)
Light kit bracket (led, strobe, halogen etc.)
Steel secure bucket lid (fits on all US-EU paint buckets)


vezos enhanced electrical system



VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!

No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!

Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.




Specifications



PROSTRIPE 300 SP - PAINT HOPPER


1 PAINT GUN
2 PAINT GUN
 Type  Hydraulic Hydraulic
 Max bar  230 bar 230 bar
 Max psi  3350 psi 3350 psi
 Max lpm  8.5 lpm 8.5 lpm
 Max gpm  2.3 gpm 2.3 gpm
 Engine  HONDA GX270 9.0 HP HONDA GX270 9.0 HP
 Guns  1 Manual 2 Manual
 Dimensions(cm)    170x72x107(h)  170x72x107(h)
 (with FLIPDRIVE)  251x72x107(h)  251x72x107(h)
 Type  Self-Propelled  Self-Propelled
 Pump size  HYDREX 70  HYDREX 70
 Console  Basic Basic
 Paint Hopper  68 lit - 18 gal 68 lit - 18 gal
 Glass Bead Syst.  Optional Optional
 Glass Tank Cap.  32 kg - 70 lbs 32 kg - 70 lbs
 Re-Stripe Pointer  Optional Optional
 Part Number  23.9255030 23.9255031
 (with FLIPDRIVE)  - 23.9255032
